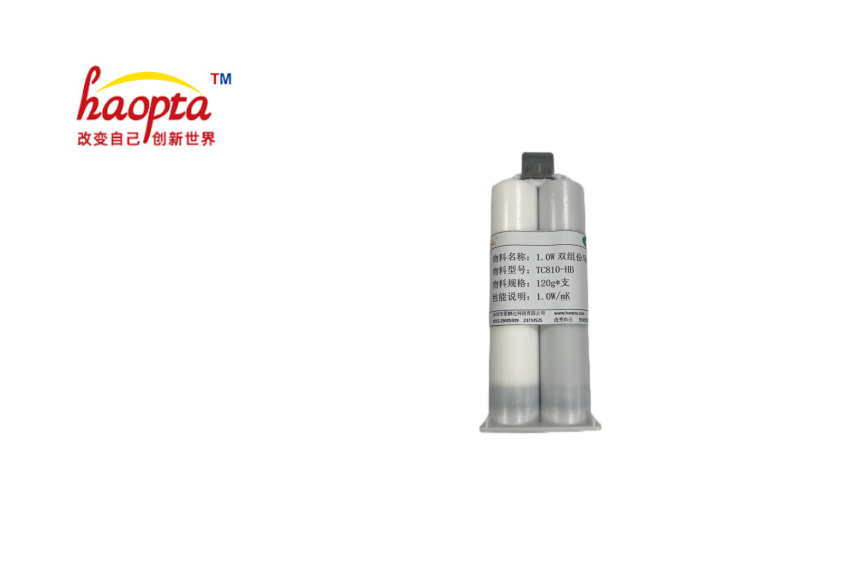

HPD-TC810Two Component Thermal Conductive Gel

HPD-TC810It is a paste like gap filling thermal conductive material, suitable for electronic/electrical fields with heat dissipation requirements, especially for situations where different components share a heat sink. It is the best thermal interface material selection solution for the shape and unevenness between the heat sink and the substrate, and can automatically dispense glue to achieve automated operations. Meet the requirements of low stress and high compression modulus during use. No settlement, no flow, good weather resistance. Easy to peel off after curing, non polluting components, convenient for later repair。

Product Introduction

Product Parameters

File Download

Product Features

优异的导热性能,低热阻;以不定型替代传统的组装式片材;相比装配式片材,可以印制更小的形状;可通过手工或自动化工艺进行点胶;点胶或直接涂覆成各种形状;柔软,可消除应力,减震;固化后可保持所需厚度。

Typical Applications

5G base station, 5G switch; WIFI module, smart speaker, smart doorbell, smart door lock; Semiconductor blocks and heat sinks; Between the power resistor and the base; Temperature regulator and assembly surface; Thermoelectric cooling device; High performance central processing unit and graphics card processor.

Product Parameters

Product FeaturesUnitNumerical valueTest Standard
Mixing Ratio— —1:1— —
Color— —A:Grey B:WhiteVision
Specific Gravityg/cm32.1±0.2ASTMD792
ViscositymPa·s10×104ASTMD2196
Minimum UsageThicknessmm0.1ASTMD374
Flame Retardant Rating— —V-0UL94
HardnessShore 0050ASTMD2240
Operating Temperature-40~200N/A
Surface drying time— —25°CSolidify2hN/A
Thermal ConductivityW/m·K1.0±0.2ASTM D5470
Thermal Resistance@After curing
1mm,20psi
℃in2/W0.92ASTM D5470
Breakdown VoltagekV/mm≧6.5ASTM D149
Volume ResistivityΩ·cm≧1012ASTM D257
Dielectric Constant@1MHz≧2ASTMD150
Dielectric Loss@1MHz≦0.1ASTMD150
Shelf Lifemonth12— —
