HPD-TCP600AThermal Grease

HPD-TCP600AThermal conductive silicone grease is a product with ultra-low thermal resistance and high thermal conductivity, suitable for electronic/electrical fields with heat dissipation requirements. It is the best thermal interface material selection solution between the smooth surface of heat sinks and the smooth surface of heating components. The particles are extremely fine and can fill the microscopic gaps between smooth surfaces. It can automatically dispense glue or screen print, achieving automated operations. Thixotropic silicone grease adhesive has strong wetting properties, strong thixotropy, nearly zero degree of freedom, non curing, and excellent weather resistance. Easy to erase after scraping, with a certain degree of process tolerance.

Product Introduction

Product Parameters

File Download

Product Features

Extremely strong wetting ability, capable of filling uneven and smooth surfaces at the microscopic level, effectively reducing interfacial thermal resistance; ·Strong thixotropy, easy to scrape and coat into any shape under manual or automated operation; ·Excellent thermal conductivity and ultra-low thermal resistance; ·Low mobility and long service life; ·The particles of silicone grease adhesive are small and can be scraped and coated into extremely thin sheets; ·Compared with flowing silicone grease, its powder is finer, has stronger thixotropy, does not flow, and has a lower degree of freedom (approaching 0). As time changes, the shape of silicone grease remains almost unchanged and hardly produces oil, making it suitable for more precise instruments.

Typical Applications

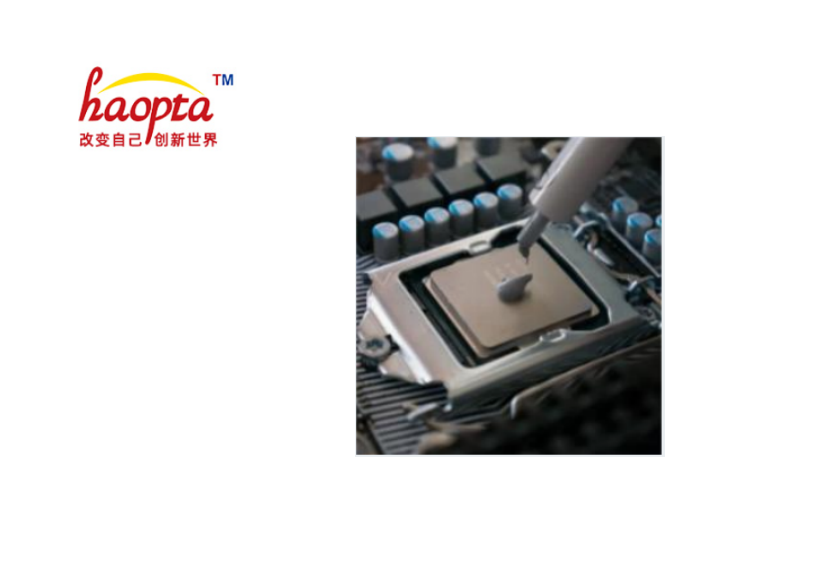

·The interface between the computer CPU or GPU and the heat sink; ·Between the power substrate and the cooling fan; ·Between the spark plug coil and the connector of the car; ·Transistors and semi transistors in electronic components; ·Between the printer's heating wire and aluminum sheet.

Product Parameters

Product FeaturesUnitParameterTest Standard
Color— —GreyVision
Specific Gravityg/cm32.7±0.2ASTM D792
ViscositymPa·s100×104ASTM D2196
Minimum UsageThicknessmm0.06ASTM D374
Flame Retardant Rating— —V-0UL94
WeightLoss%≦0.3150℃240h
Operating Temperature-40~150N/A
Thermal Properties :
Thermal ConductivityW/m·K6.0±0.2ASTM D5470
Thermal Resistance@0.1mm,40psi℃in2/W0.02ASTM D5470
Electrical Characteristics:
Breakdown VoltagekV/mm≧6.5ASTM D149
Volume ResistivityΩ·cm≧1013ASTM D257
Dielectric Constant@1MHz≧4ASTM D150
Dielectric Loss@1MHz≦0.1ASTM D150
Shelf LifeMonth12— —
