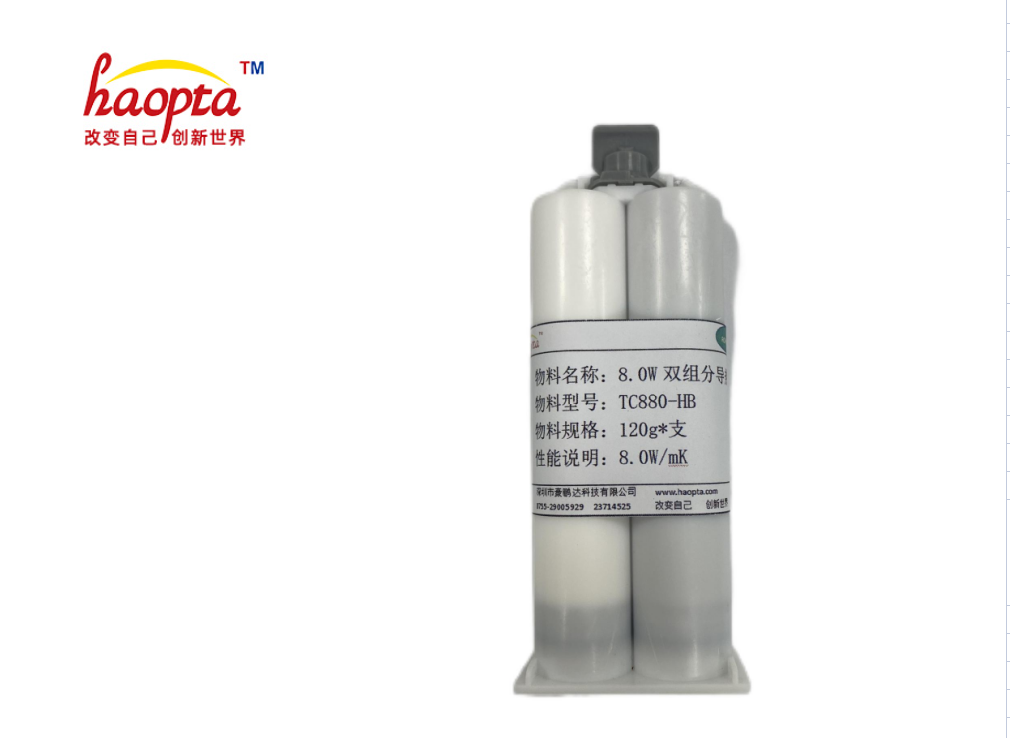

HPD-TC880Two Component Thermal Conductive Gel

HPD-TC880It is a paste like gap filling thermal conductive material, suitable for electronic/electrical fields with heat dissipation requirements, especially for situations where different components share a heat sink. It is the best thermal interface material selection solution for the shape and unevenness between the heat sink and the substrate, and can automatically dispense glue to achieve automated operations. Meet the requirements of low stress and high compression modulus during use. No settlement, no flow, good weather resistance. Easy to peel off after curing, non polluting components, convenient for later repair

Consult Now

Product Features

Excellent thermal conductivity and low thermal resistance; Replace traditional assembled sheets with amorphous ones; Compared to prefabricated sheets, smaller shapes can be printed; Glue dispensing can be done manually or through automated processes; Glue or directly coat into various shapes; Soft, stress relieving, shock absorbing; After curing, it can maintain the required thickness.

Typical Applications

5G base station, 5G switch; WIFI module, smart speaker, smart doorbell, smart door lock; Semiconductor blocks and heat sinks; Between the power resistor and the base; Temperature regulator and assembly surface; Thermoelectric cooling device; High performance central processing unit and graphics card processor.

Product Parameters

Product Features	Unit	Numerical value	Test Standard
Mixing Ratio	— —	1：1	— —
Color	——	A：Grey B：White	Vision
Specific Gravity	g/cm³	3.4±0.2	ASTMD792
Viscosity	mPa·s	200×10⁴	ASTMD2196
Minimum UsageThickness	mm	0.3	ASTMD374
Flame Retardant Rating	— —	V-0	UL94
Hardness	Shore 00	50	ASTMD2240
Operating Temperature	℃	-40~200	N/A
Surface drying time	— —	25°CSolidify2h	N/A
Thermal Conductivity	W/m·K	8.0±0.5	ASTMD5470
Thermal Resistance@After curing 1mm,20psi	℃in²/W	0.22	ASTMD5470
Breakdown Voltage	kV/mm	≧6.5	ASTMD149
Volume Resistivity	Ω·cm	≧10¹²	ASTMD257
Dielectric Constant	@1MHz	≧6	ASTMD150
Dielectric Loss	@1MHz	≦0.1	ASTMD150
Shelf Life	month	12	— —
