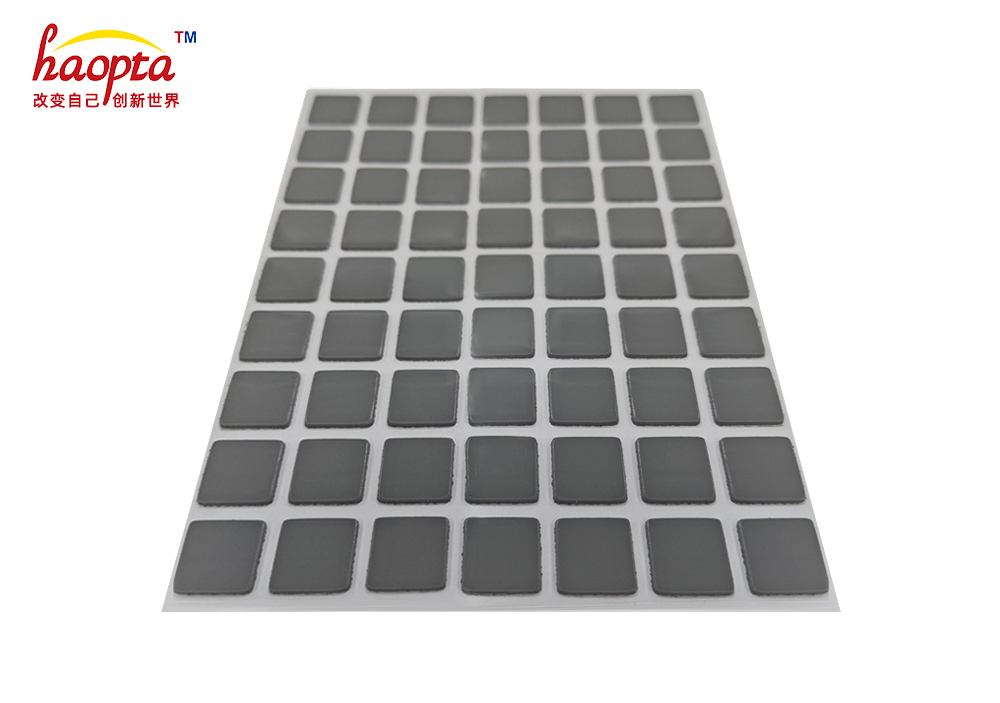

TC1500 Thermal Conductive Silicone Sheet

It is an ultra-high thermal conductivity polymer material silicone gasket, suitable for the electronic/electrical field with heat dissipation needs. It is a design solution specifically designed to use gaps to transfer heat. It can fill gaps, complete heat transfer between heating and cooling parts, and also serve insulation, shock absorption, sealing and other functions. It can meet the design requirements of equipment miniaturization and ultra-thin, with high processability and usability, and a wide range of thickness applications. It is an excellent thermal conductivity filling material. It has certain flexibility, excellent insulation, compressibility, and natural surface viscosity, which can meet the requirements of automated production and convenient product maintenance.

Product Introduction

Product Parameters

File Download

Product Features

Excellent thermal conductivity, low thermal resistance, and stable performance, reliable for long-term use; Bridge the process gap in structure and reduce the process gap requirements for radiators and heat dissipation structural components; Has certain flexibility, excellent insulation, and protection against EMC; The material is soft, has good compressibility, and has shock-absorbing and sound-absorbing effects; Good resilience and convenient installation and testing for repeated use; The surface has a certain adhesive force, which can effectively adhere to IC or metal surfaces and is not easy to peel off.

Typical Applications

Between the aluminum substrate and the heat sink; Thermal conductivity between MOS tubes, transformers (or capacitors/PFC inductors) and heat sinks or enclosures; Thermal conduction and heat dissipation between the motherboard IC and the heat sink or casing; Application in the automotive electronics industry (such as xenon lamp ballasts, speakers, car series products, etc.); Between the amplifier IC, image decoder IC, and heat sink (casing); Microwave oven/air conditioner (between fan motor power IC and housing)/induction cooker (between thermistor and heat sink).

Product Parameters

List of Physical PropertiesUnitNumerical valueTest Standard
Structure——Ceramic Filled SiliconN/A
Color——深GreyVision
Thermal ConductivityW/m·K15.0±0.5ASTM D5470
Specific Gravityg/cm33.5±0.2ASTM D792
Thicknessmm1.0-3.0ASTM D374
HardnessShore C30-55ASTM D 2240
Breakdown VoltagekV/mm≧6.5ASTM D149
Volume ResistivityΩ·cm

≧1013

 ASTM D257
Dielectric Constant@1MHz≧8ASTM D150
Dielectric Loss@1MHz≦0.1ASTM D150
Tensile StrengthMPa≧0.05ASTM D412
Elongation at break%≥15ASTM D412
Compression Ratio@50psi%≧10ASTM D 575
Oil Yield Rate%≦3——
Flame Retardant Rating——V-0UL94
Operating Temperature-40~200N/A
Shelf Lifemonth24——
