Thermal Conductive Silicone Sheet TC150J

It is a low-density, high compression ratio, and high viscosity polymer material silicone gasket, suitable for the electronic/electrical field with heat dissipation requirements. It is specifically designed to use gaps to transfer heat, fill gaps, and complete heat transfer between heating and cooling parts. At the same time, it also plays a role in insulation, shock absorption, sealing, etc. It can meet the design requirements of equipment miniaturization and ultra-thin design, with high processability and usability, and a wide range of thickness applications. It is an excellent thermal conductive filling material. It has certain flexibility, excellent insulation, compressibility, and natural surface viscosity, which can meet the requirements of automated production and convenient product maintenance.

Product Introduction

Product Parameters

File Download

Product Features

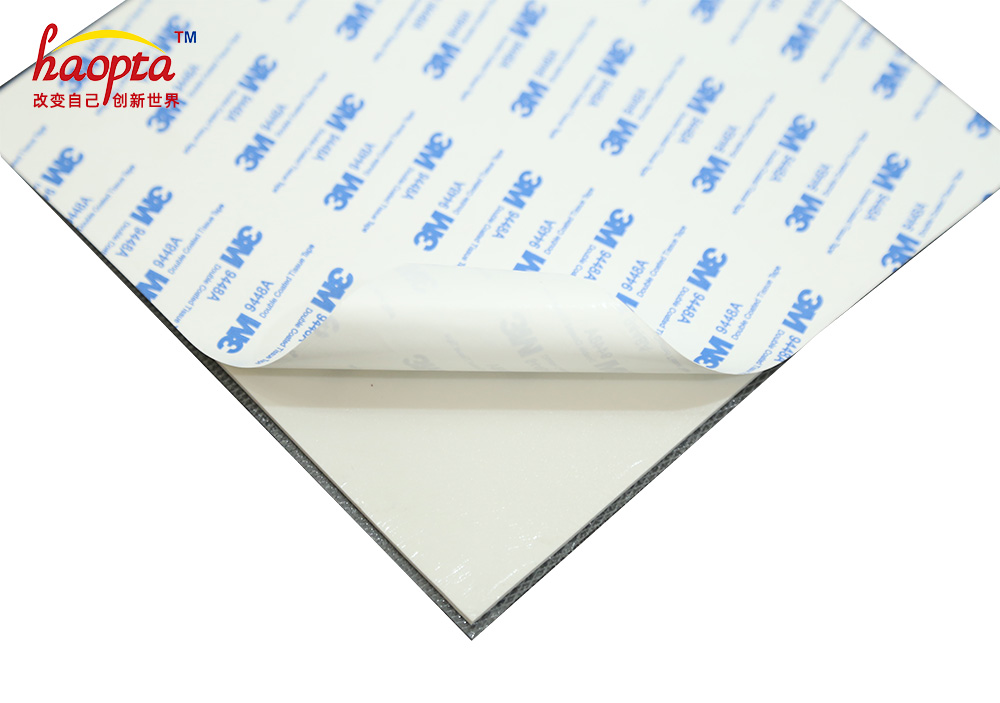

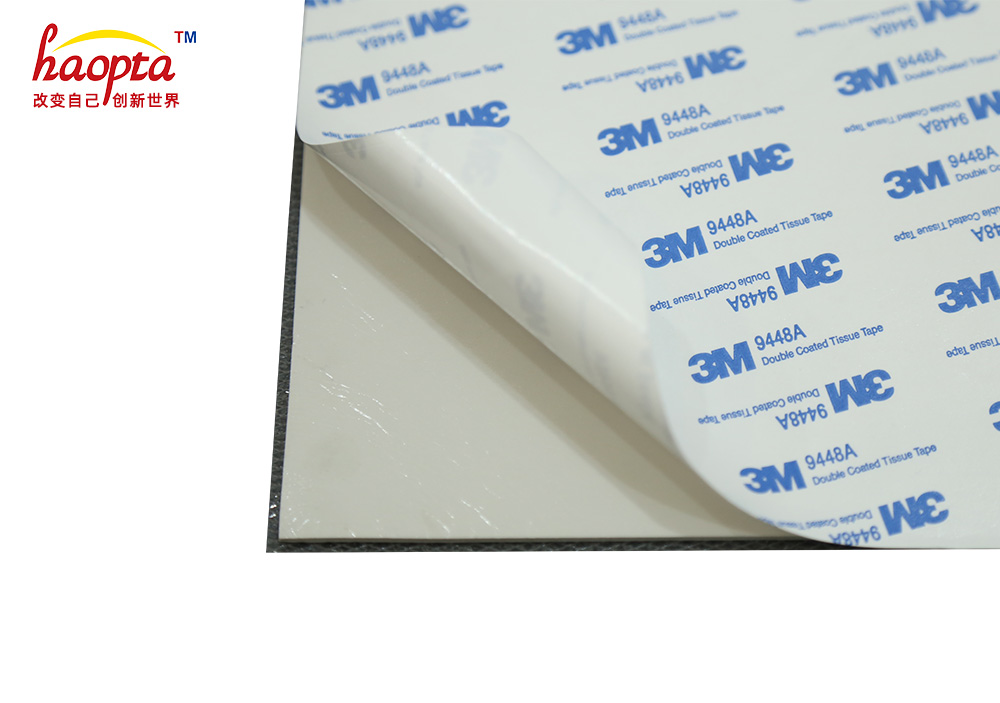

Excellent thermal conductivity, low thermal resistance, and stable performance, reliable for long-term use; Low density products effectively reduce product weight and have a wider range of applications; Bridge the process gap in structure and reduce the process gap requirements for radiators and heat dissipation structural components; Has certain flexibility, excellent insulation, and protection against EMC; The material is soft, has good compressibility, and has shock-absorbing and sound-absorbing effects; Good resilience and convenient installation and testing for repeated use; Single sided adhesive backing, capable of backing 3M9448A, 3M467, etc., can effectively adhere to IC or metal surfaces without easy detachment.

Typical Applications

Between the aluminum substrate and the heat sink; Thermal conductivity between MOS tubes, transformers (or capacitors/PFC inductors) and heat sinks or enclosures; Thermal conduction and heat dissipation between the motherboard IC and the heat sink or casing; Application in the automotive electronics industry (such as xenon lamp ballasts, speakers, car series products, etc.); Between the amplifier IC, image decoder IC, and heat sink (casing); Microwave oven/air conditioner (between fan motor power IC and housing)/induction cooker (between thermistor and heat sink).

Product Parameters

List of physical propertiesUnitNumerical valueTest Standard
Structure——Ceramic Filled SiliconN/A
Color——WhiteVision
Thermal ConductivityW/m·K1.5±0.2ASTM D5470
Specific Gravityg/cm31.9±0.1ASTM D792
Thicknessmm0.3-10ASTM D374
HardnessShore C10-55ASTM D 2240
Breakdown VoltagekV/mm≧6.5ASTM D149
Volume ResistivityΩ·cm≧1013 ASTM D257
Dielectric Constant@1MHz≧2ASTM D150
Dielectric Loss@1MHz≦0.1ASTM D150
Tensile StrengthMPa≧0.3ASTM D412
Elongation at break%≥50ASTM D412
Compression Ratio@50psi%≧25ASTM D 575
Oil Yield Rate%≦3——
Flame Retardant Rating——V-0UL94
Operating Temperature-40~200N/A
Shelf Lifemonth24——
