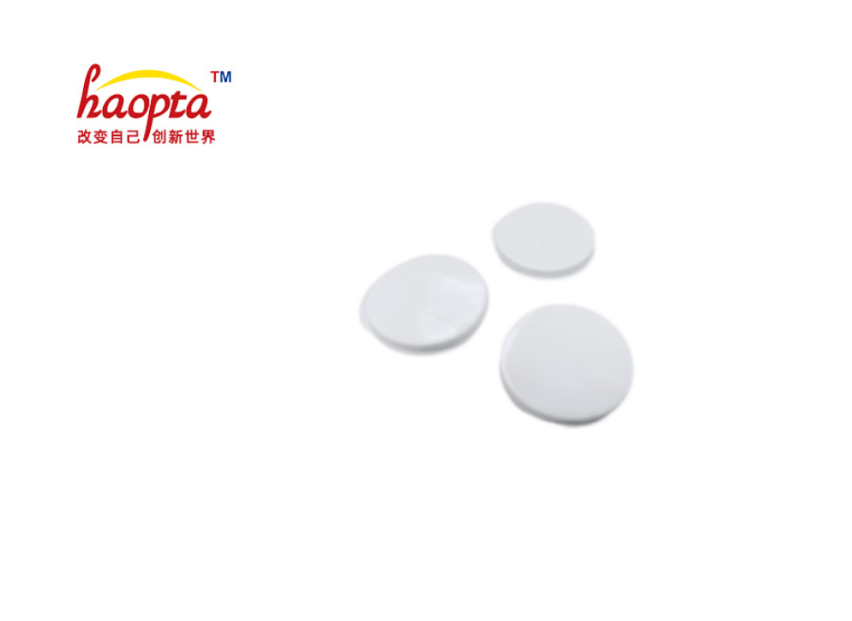

2-HPD-TC300DS Ultra low Volatility Thermal Conductive Ailicone Gasket

2-HPD‑TC300DS is a low‑outgassing polymer‑based silicone thermal pad designed for electronic and electrical applications requiring thermal management. Specially developed for gap‑filling thermal transfer designs, it fills gaps to conduct heat between heat‑generating components and heat sinks, while providing insulation, shock absorption and sealing performance. It supports miniaturized and ultra‑thin device designs with excellent processability and practicality over a broad thickness range, serving as an ideal thermal interface filler. Featuring good flexibility, superior insulation, high compressibility and inherent surface tackiness, it adapts to automated production and facilitates product maintenance.

Product Introduction

Product Parameters

File Download

Product Features

Superior thermal conductivity and low thermal resistance ensure stable performance and long‑term reliability. It compensates for manufacturing tolerances and lowers tolerance requirements for heat sinks and thermal structural parts. It provides favorable flexibility, excellent insulation and EMC protection. The soft material delivers great compressibility with shock‑absorbing and sound‑dampening properties. High resilience allows convenient reusability during installation and testing. Its inherent surface tack adheres firmly to ICs or metal surfaces and resists easy detachment.

Typical Applications

Thermal conduction between aluminum substrate and heat sink; thermal transfer for MOSFETs, transformers (or capacitors / PFC inductors) to heat sinks or housings; thermal dissipation for main‑board ICs against heat sinks or enclosures; automotive electronics applications (such as xenon lamp ballasts, audio equipment and vehicle‑mounted products); thermal interface for power amplifier ICs and image decoder ICs with heat sinks (housings); microwave ovens, air conditioners (power ICs of fan motors to enclosures), induction cookers (thermistors to heat sinks)

Product Parameters

Product FeaturesUnitParameterTest Standard
Structure——Ceramic Filled SiliconN/A
Color——WhiteVision
Specific Gravityg/cm32.9±0.3ASTM D792
Thicknessmm0.3-10.0ASTM D374
HardnessShore C20-55ASTM D 2240
Tensile Strength@SC 30,1mmMPa≧0.13ASTM D412
Tear Strength @SC 30,1mN/mm≥0.5ASTM D412
Elongation at break@SC 30,1m%≥150ASTM D412
Compression Ratio@SC 30,50psi%≧25ASTM D 575
Oil Yield Rate%≦3150℃48h
Low Molecular Volatility——ND130℃@24h
Flame Retardant Rating——V-0UL94
Operating Temperature—40~200N/A
Thermal Properties :
Thermal Conductivity@3mm,20psiW/m·K≧3ASTM D5470
Thermal Resistance@1mm,20psi℃in2/W≦0.52ASTM D5470
Electrical Characteristics:
Breakdown Voltage@1mmkV/mm≧6.5ASTM D149
Volume Resistivity@1mmΩ·cm≧1013ASTM D257
Dielectric Constant@2mm,1MHzC²/(N·m²)≧5ASTM D150
Dielectric Loss@2mm,1MHz——≦0.1ASTM D150
Shelf LifeMonth12——
