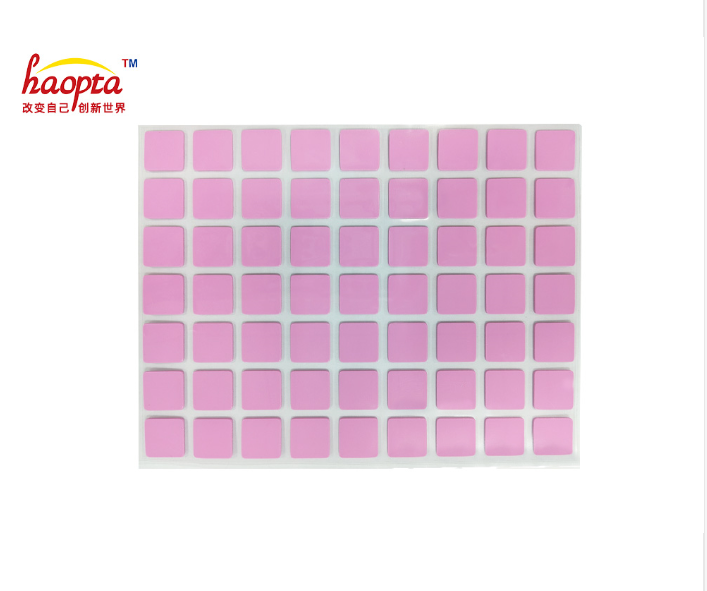

2-HPD-TC450 Thermal Conductive Silicone Pad

It is a high‑thermal‑conductivity polymer silicone pad, suitable for electronics and electrical sectors with heat‑dissipation requirements. Specially designed for heat transfer through gaps, it fills voids to realize thermal conduction between heat‑generating components and heat‑dissipating structures. Meanwhile, it delivers insulation, shock absorption and sealing performance. It meets the design demands for miniaturized and ultra‑thin equipment. Featuring excellent manufacturability and practicality with a wide applicable thickness range, it serves as an ideal thermal interface filling material.
With good flexibility, outstanding insulation and compressibility, plus natural surface tackiness, it supports automated production and facilitates product maintenance.

Product Introduction

Product Parameters

File Download

Product Features

Excellent thermal conductivity, low thermal resistance, and stable performance, reliable for long-term use; Bridge the process gap in structure and reduce the process gap requirements for radiators and heat dissipation structural components; Has certain flexibility, excellent insulation, and protection against EMC; The material is soft, has good compressibility, and has shock-absorbing and sound-absorbing effects; Good resilience and convenient installation and testing for repeated use; The surface has a certain adhesive force, which can effectively adhere to IC or metal surfaces and is not easy to peel off.

Typical Applications

Between the aluminum substrate and the heat sink; Thermal conductivity between MOS tubes, transformers (or capacitors/PFC inductors) and heat sinks or enclosures; Thermal conduction and heat dissipation between the motherboard IC and the heat sink or casing; Application in the automotive electronics industry (such as xenon lamp ballasts, speakers, car series products, etc.); Between the amplifier IC, image decoder IC, and heat sink (casing); Microwave oven/air conditioner (between fan motor power IC and housing)/induction cooker (between thermistor and heat sink).

Product Parameters

Product FeaturesUnitParameterTest Standard
Structure— —Ceramic Filled SiliconN/A
Color— —GreyVision
Specific Gravityg/cm33.2±0.2ASTM D792
Thicknessmm0.3-10.0ASTM D374
HardnessShore C20-55ASTM D 2240
Tensile Strength@SC30,1mmMPa≧0.1ASTM D412
Tear Strength @SC30,1mmN/mm≥0.4ASTM D412
Elongation at break@SC30,1mm%≥120ASTM D412
Compression Ratio@SC25,50psi%≧20ASTMD575
Oil Yield Rate%≦3150℃48h
Flame Retardant Rating— —V-0UL94
Operating Temperature-40~200N/A
                        Thermal Properties :
Thermal Conductivity@3mm,20psiW/m·K4.5±0.2ASTMD5470
Thermal Resistance@1mm,20psi℃in2/W≦0.32ASTMD5470
                        Thermal Properties
Breakdown Voltage@1mmkV/mm≧6.5ASTMD149
Volume Resistivity@1mmΩ·cm≧1013ASTMD257
Dielectric Constant@2mm,1MHzC²/(N·m²)≧5ASTMD150
Dielectric Loss@2mm,1MHz— —≦0.1ASTMD150
Shelf LifeMonth12— —
